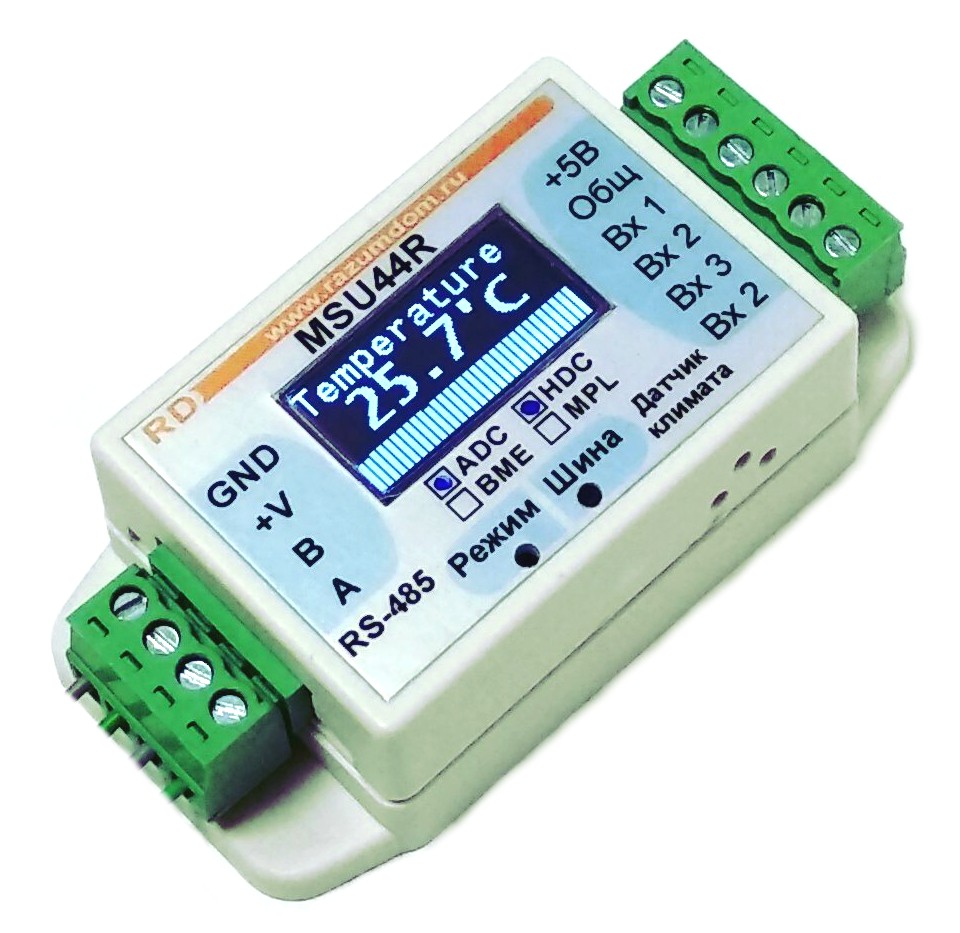

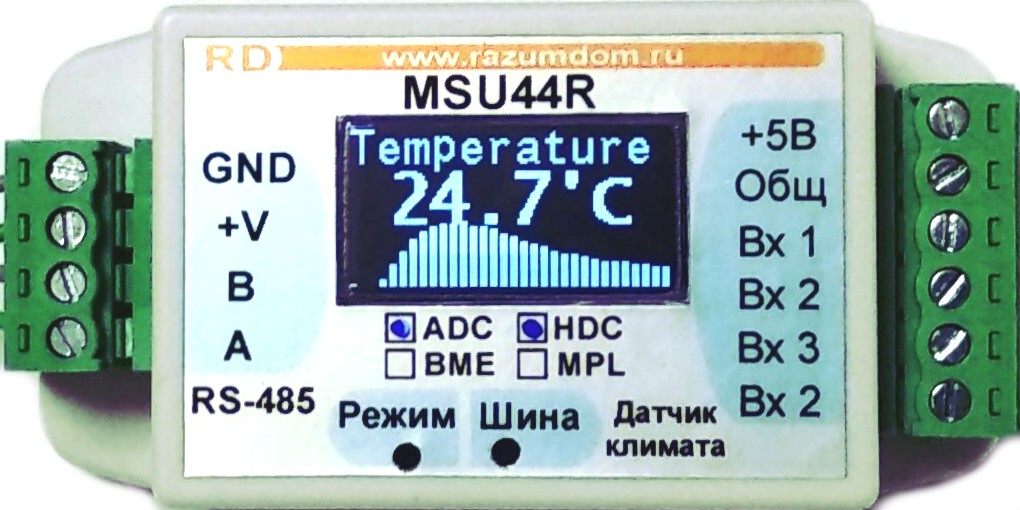

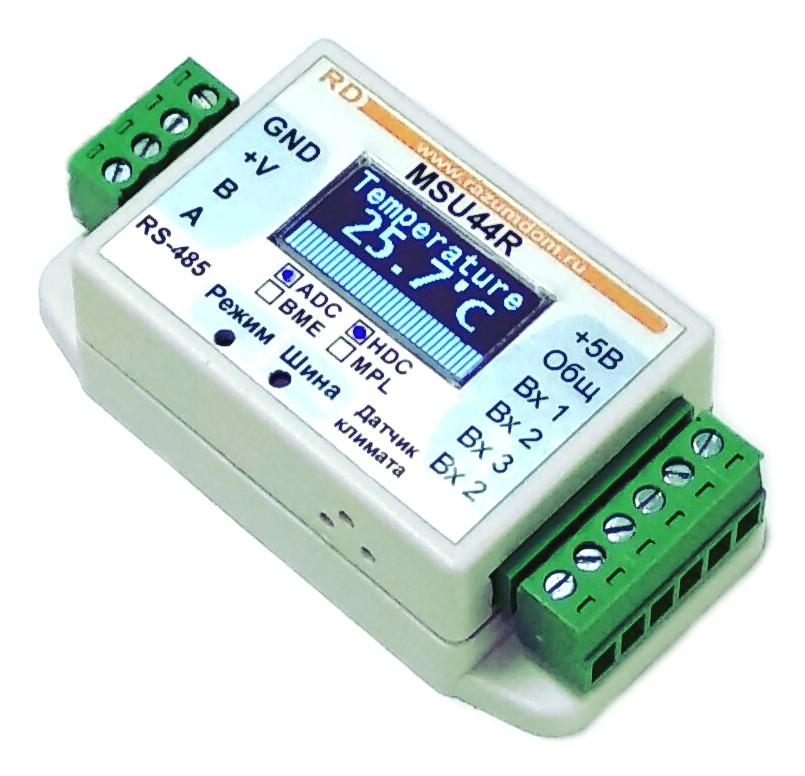

Analog input module for measuring four 0-5V analog signals. Built-in temperature and humidity sensor, OLED display, ADC 18 bit.
MSU44RDAH analog input modules are designed to create telemetry systems. The modules are designed to measure digital or analog signals.
A source of a digital signal is the digital I2C built-in temperature and humidity sensor.

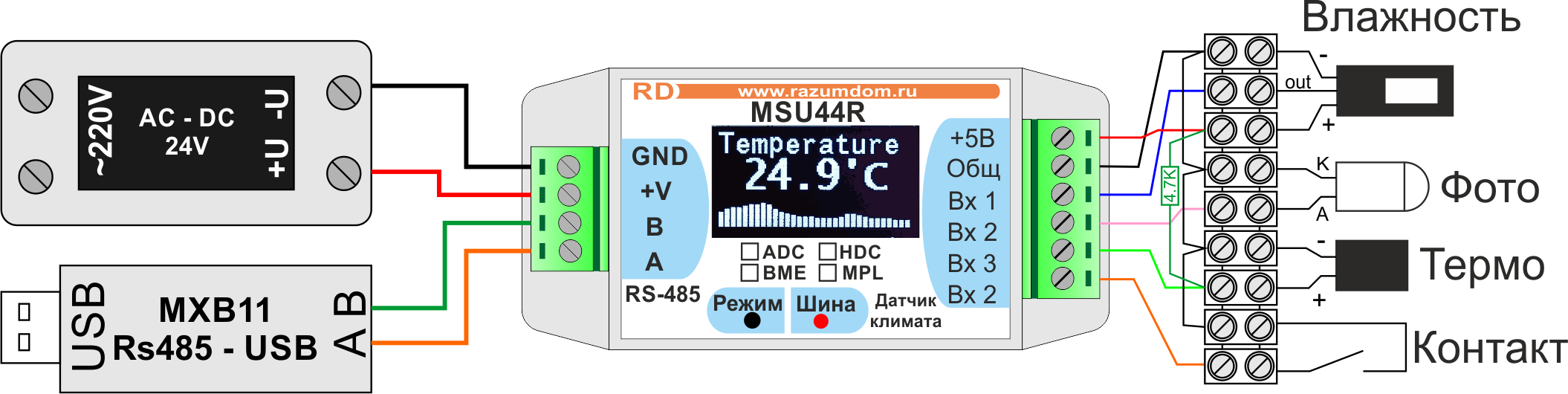

A source of analog signals can be:
- measurement of electrical quantities: voltage, current, impedance, power;- sensors of climatic parameters: temperature, humidity, atmospheric pressure, illumination, gas concentration;
- sensors for measuring physical quantities: level, mass, speed, water pressure.
The module performs gathering, processing and transferring this data in the controller or PC via the RS-485 bus under the Modbus TRU protocol.
-
You can ask any question you may have about the product or the work of the store.
Our qualified specialists will help you -
Documentation
MSU44R_QM Size: 679,1 кб
