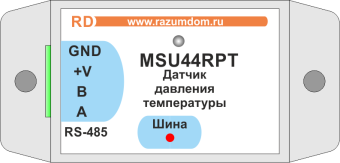

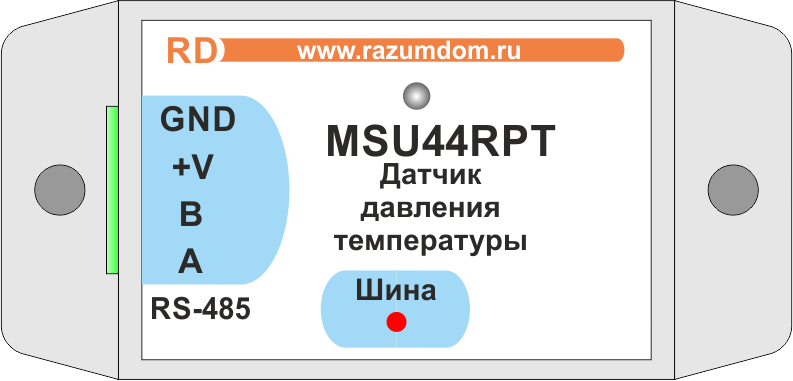

MSU44RPT pressure and temperature sensor

Pressure and temperature sensor with integrated digital sensor.

The MSU44RPT sensor is designed to measure pressure and temperature and transferring this data in the controller under the Modbus TRU protocol.

The modules have the following features:

- built-in temperature and humidity sensor;

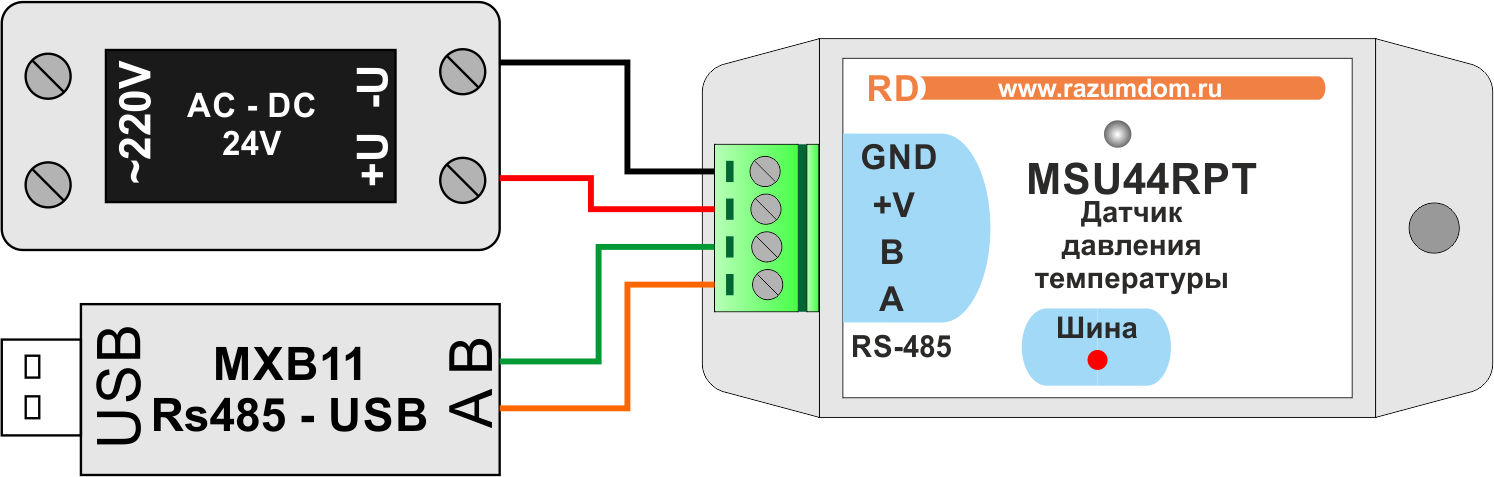

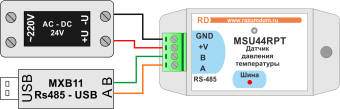

- the module connects to the RS485 bus via a 4-wire cable, including power;

- the module supports the exchange protocol: MODBUS RTU;

- indication of operation of the RS485 bus and the button for switching modes;

- built-in real time clock;

- built-in algorithms of interaction and recount of values. Number of algorithms - 76;

- calculation of average value, search for min and max, addition or multiplication of two values, determining threshold values, calculating various parameters: dew points, probability of frosts and other arithmetic and logical actions.

- the module can work together with the controllers: “RD” or industrial controllers;

- module power supply from 5V to 25V.
