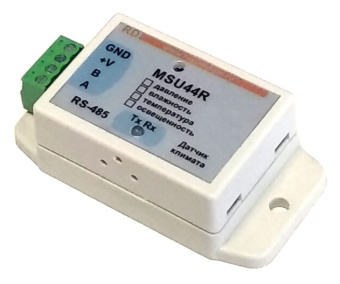

The MSU44RHTLP sensor is designed to measure temperature, humidity, illumination, pressure. Accuracy of indications: 0.1°C; 0.1% humidity.
The MSU44RHTLP sensor is designed to measure temperature, humidity, illumination, pressure and transferring this data in the controller un
der the Modbus TRU protocol.
Accuracy of indications: 0.1°C; 0.1% humidity. Error: 0.5°C; 2% humidity.
The modules have the following features:
- built-in temperature and humidity sensor;
- the module connects to the RS485 bus via a 4-wire cable, including power;
- the module supports the exchange protocol: MODBUS RTU;
- indication of operation of the RS485 bus and the button for switching modes;
- built-in real time clock;
- built-in algorithms of interaction and recount of values. Number of algorithms - 76;
- calculation of average value, search for min and max, addition or multiplication of two values, determining threshold values, calculating various parameters: dew points, probability of frosts and other arithmetic and logical actions.
- the module can work together with the controllers: “RD” or industrial controllers;
- module power supply from 5V to 25V.
-
You can ask any question you may have about the product or the work of the store.
Our qualified specialists will help you -
Documentation
MSU44RHTLP_QM Size: 666,3 кб
