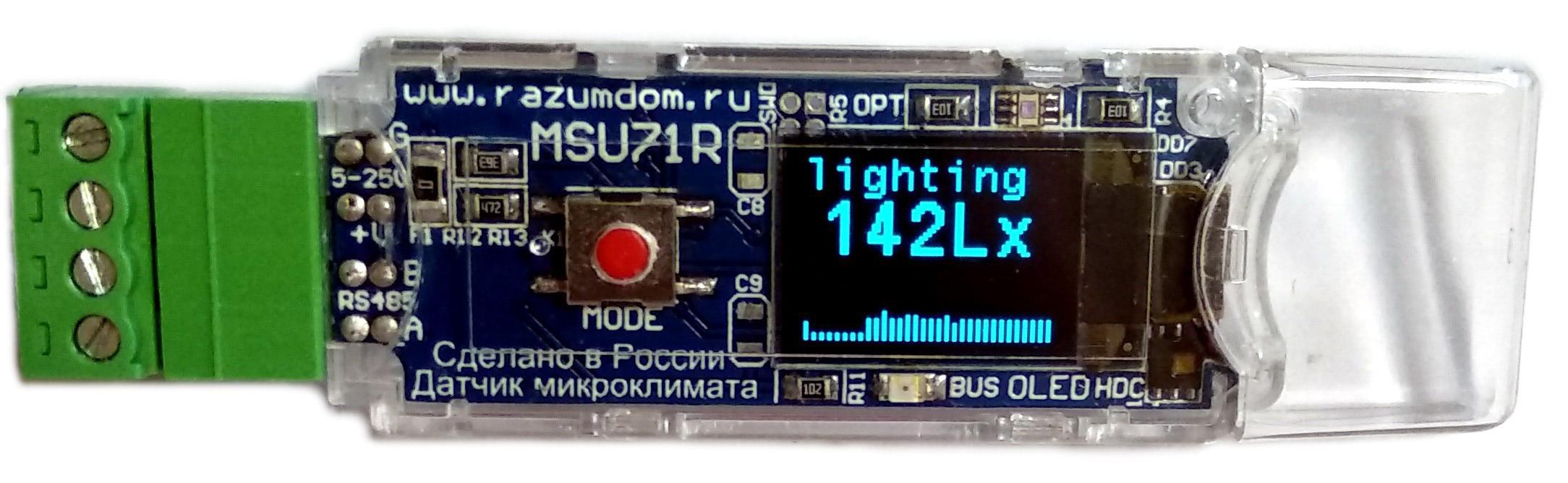

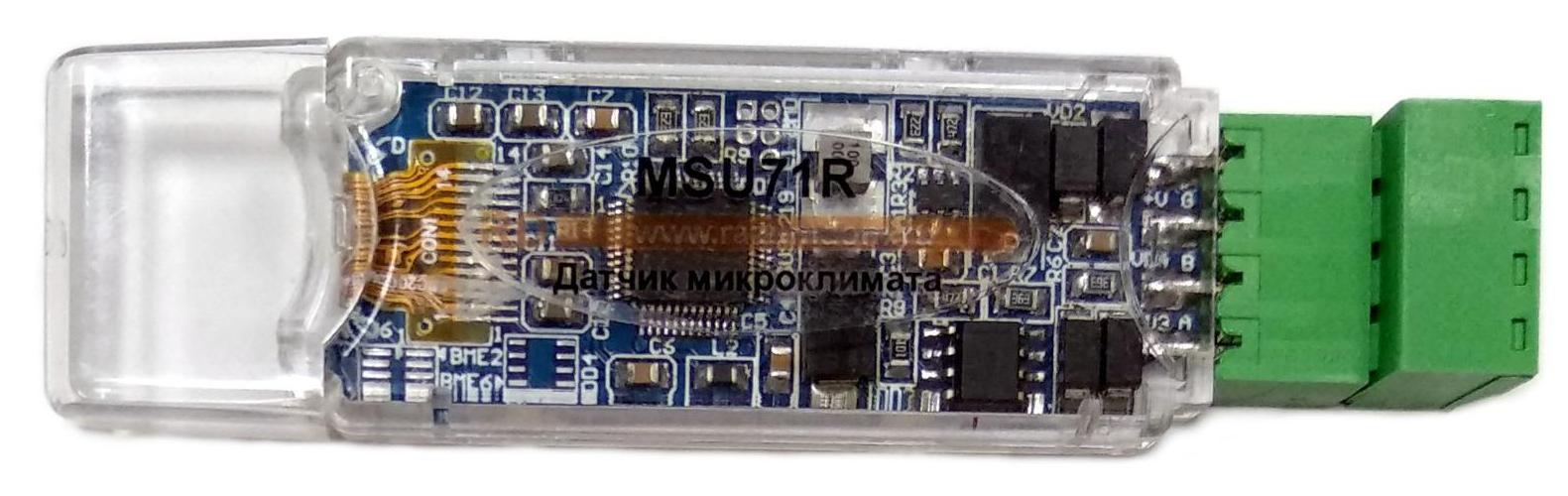

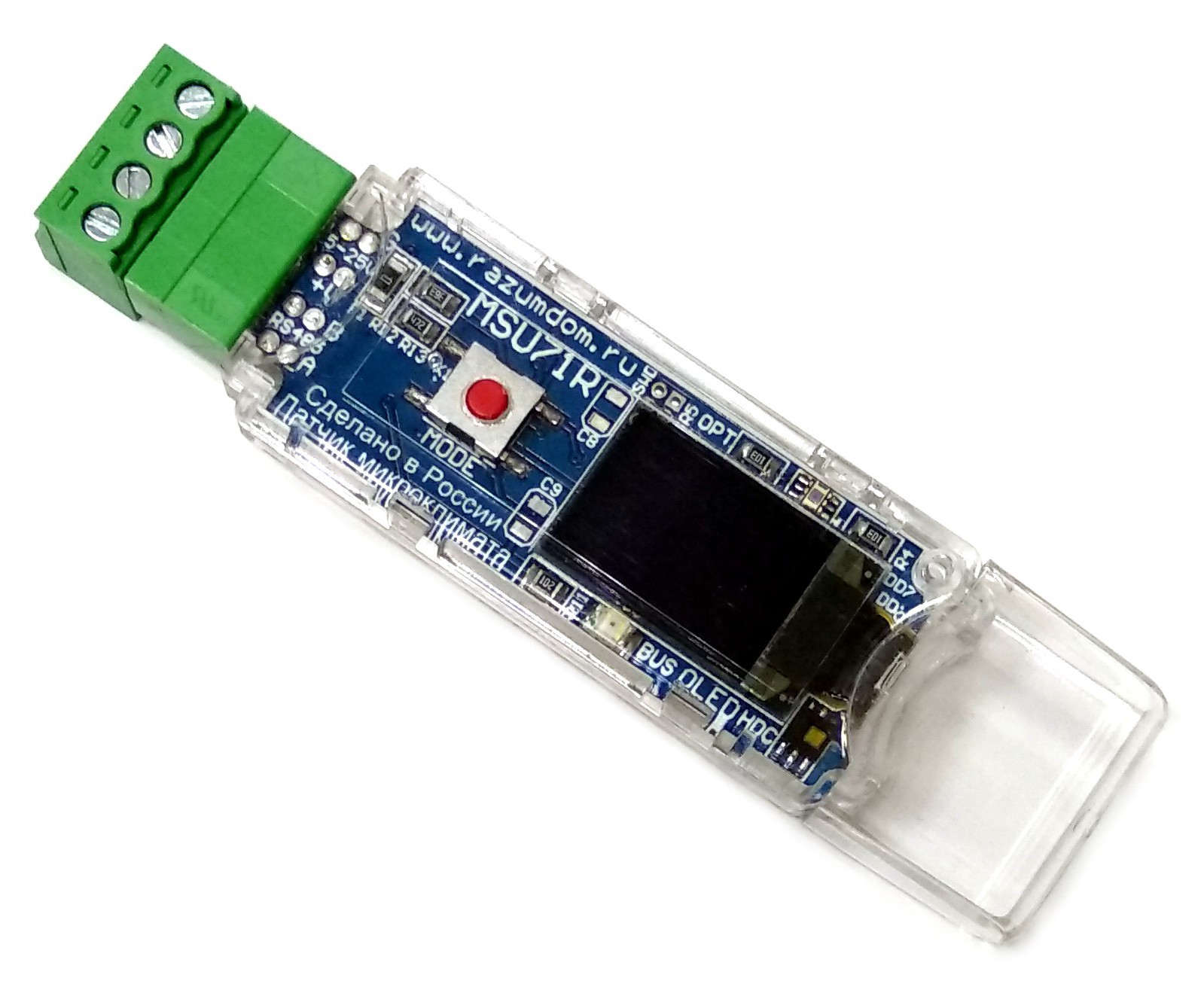

Module of the sensor of temperature, humidity, illumination, OLED display.
Temperature measurement range: from -40 ° С to + 80 ° С, accuracy 0.1 ° С.
Humidity measurement range: from 10% to 100%, accuracy 0.1%.
The modules are designed to create telemetry systems. The modules are designed to measure digital signals from sensors.
The source of digital signal is the digital I2C built-in sensor of temperature, humidity, illumination.
The module performs gathering, processing and transferring this data in the controller or PC via the RS-485 bus under the Modbus TRU protocol.
The modules have the following features:
- built-in sensors of temperature, humidity, illumination;

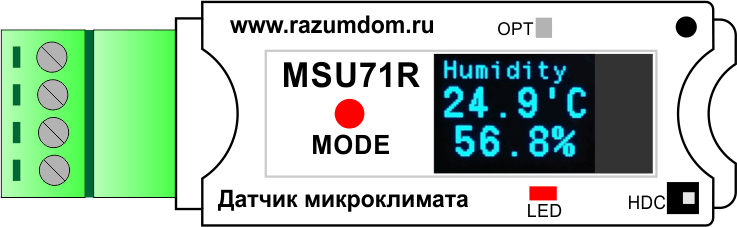

- built-in monochrome OLED display 64x48 pixels;
- indication from 1 to 4 parameters at the same time;
- built-in real time clock;
- indication of time and date;
- indication of a graph of change in measured parameter over time;

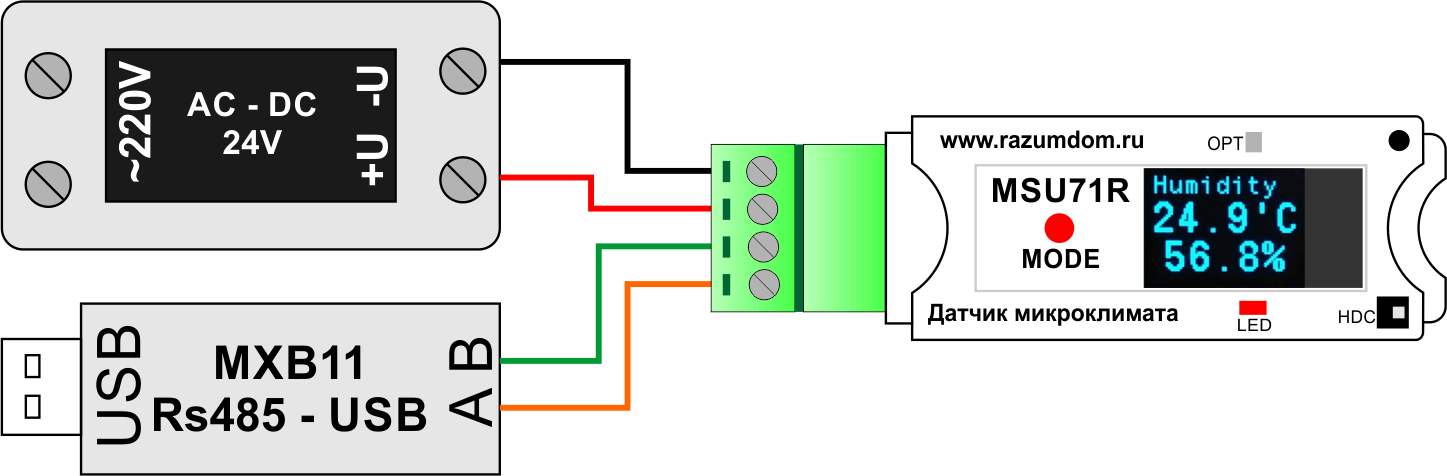

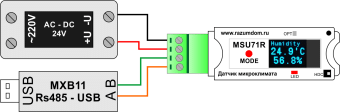

- the module connects to the RS485 bus via a 4-wire cable, including power;
- the module supports the exchange protocol: MODBUS RTU;
- indication of operation of the RS485 bus and a button for switching modes;
- automatic calculation of sensors coefficients;
- built-in algorithms of interaction and re-count of values;
- calculation of average value, search for min and max, addition or multiplication of two values, determination of threshold values, calculation of various parameters: dew points, probability of frosts and other arithmetic and logical actions.
- the module can work together with the controllers: “RD” or industrial controllers;
- module power supply from 5V to 25V.
Recommended supply voltage 5V. When powered from 24V with enabled display, the module will warm up a bit more and introduce distortions into the measured temperature of the built-in sensor.
Modification of the module is a basic version of the MSU71R and additional components: OLED display - D; temperature and humidity sensor - HT; illumination sensor - L.
-
