The DDC420 4-channel PWM signal amplifier is designed to amplify the output current of the regulator. Maximum current 20A voltage up to 30V per channel.
Share this
The price is valid only for the online store and may differ from the prices in retail stores
  • Description
  • Ask a Question
  • Documentation
  • The DDC420 4-channel PWM signal amplifier is designed to amplify the output current of the regulator. Maximum current 20A voltage up to 30V per channel.

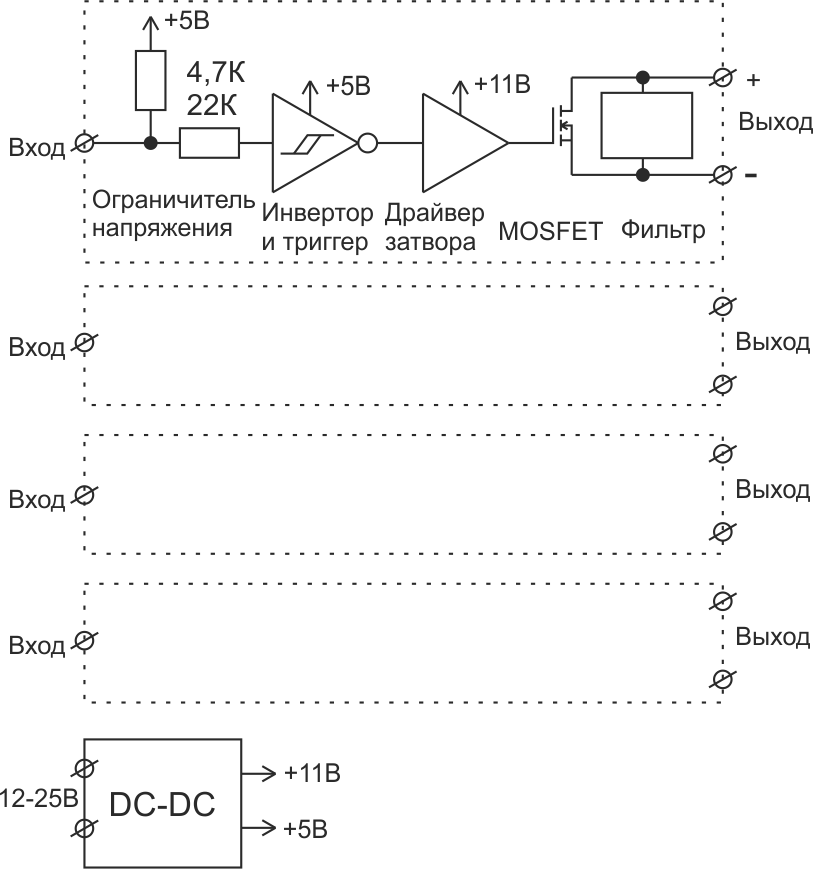

    The DDC420 4-channel PWM signal current amplifier for RGBW dimmers is designed to amplify the output current of the dimmer.


    The modules have the following features:

    - The module has 4 independent channels;

    - The module has powerful MOSFET transistors and gate drivers controlled by logical levels;

    - Maximum load: voltage up to 30V; current up to 20A DC;

    - Possible parallel connection of several channels to increase the current up to 80A;

    - It can be used as a solid-state DC relay;

    - Has a built-in switching stabilizer of power from the incoming voltage 12-25V;

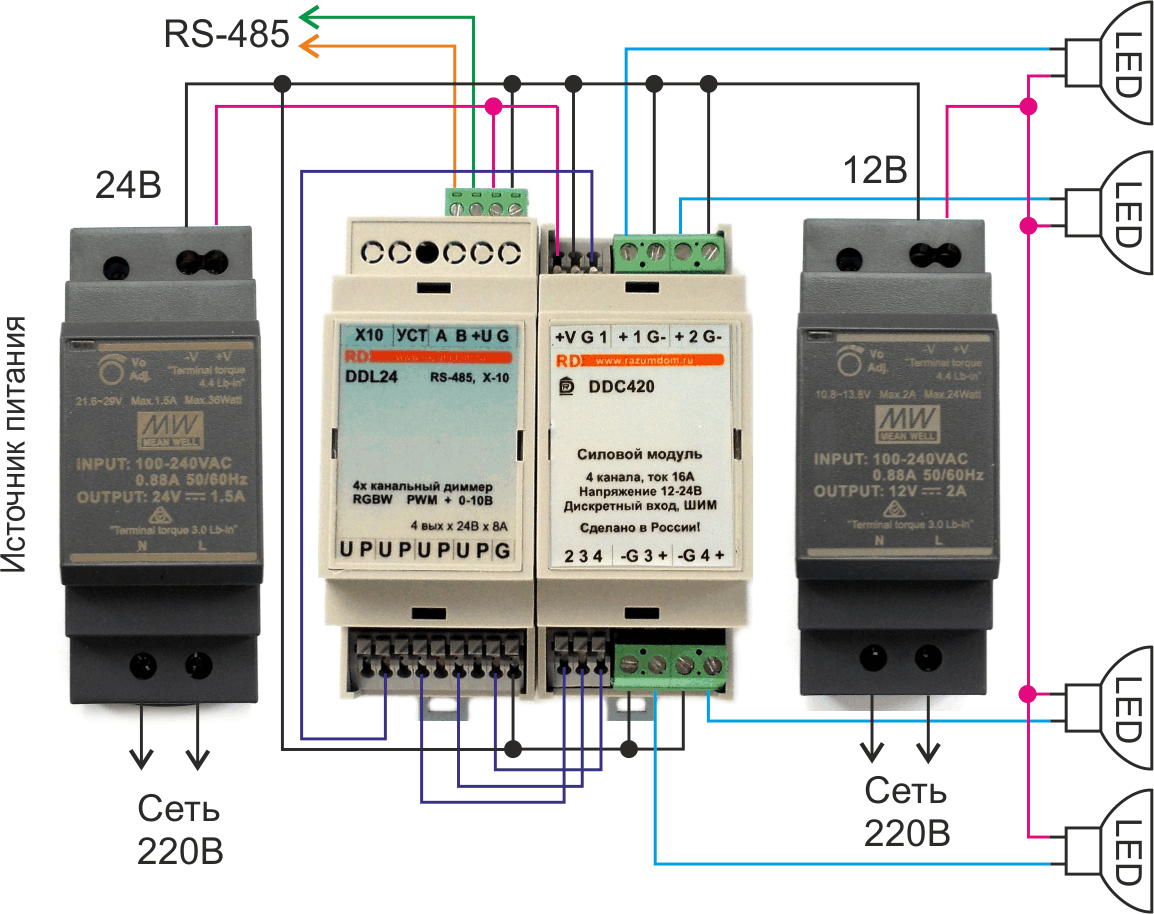

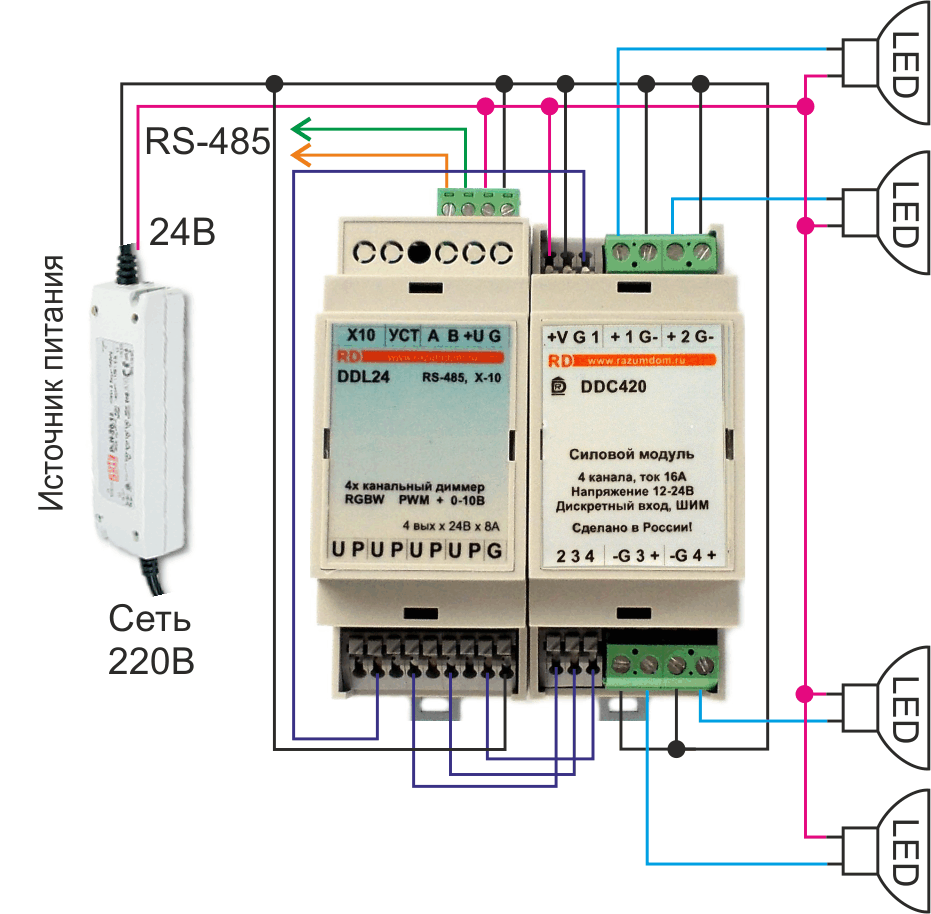

    - Powering of the module (12-25V) and the lamps (1-25V) may be different from different sources. But a common negative wire should be one.

    - The switching frequency can be in the range from 100 Hz to 1 kHz;

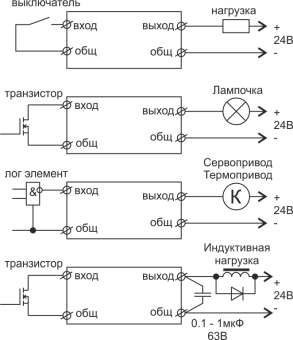

    - The module can work together with PWM controllers of any manufacturers and any interfaces;

    - Installation in an electric board on a DIN rail, modules 2 DIN wide.

    Technical specifications.

    - Supply voltage:                                                                12V ... 25V;

    - Power consumption:                                                      no more than 0.2 W;

    - Commuting voltage:                                                      0 ... 30V;

    - Commuting load current per each channel:              0 ... 20A;

    - Operating switching frequency in the range:           100 Hz ... 1 kHz;

    - Cross section of wires for control:                              28 - 15AWG, 0.1 - 1.5mm2;

    - Cross section of input wires:                                       22 - 18AWG, 0.3 - 0.75mm2;

    - Cross section of output wires:                                    26 - 10AWG, 0.14 - 5.3 (4) mm2;
