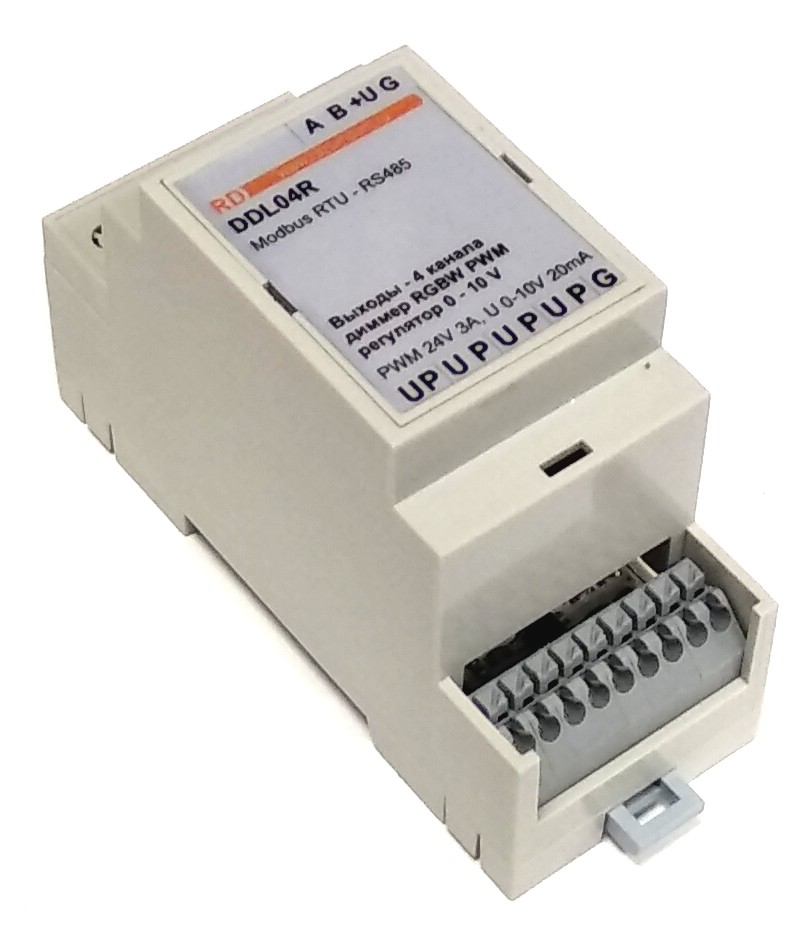

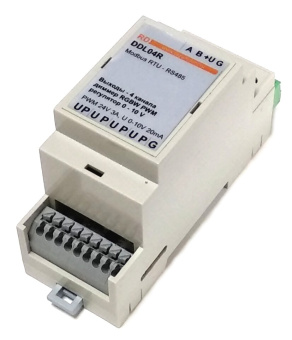

DDL04R: 4-channel dimmer PWM LED RGBW and 4-channel regulator 0-10 V.

Module 4 channel regulator. The module has 4 MOSFET outputs of the PWM signals up to 3A 30V per channel. 4 signal outputs 0 - 10V with current up to 20mA. The module can control brightness by a 4-color RGBW tape, adjust level of opening taps. It has built-in scripts, timers, RTC, a smooth increase in output level, set the PWM frequency from 1 Hz to 4 kHz.

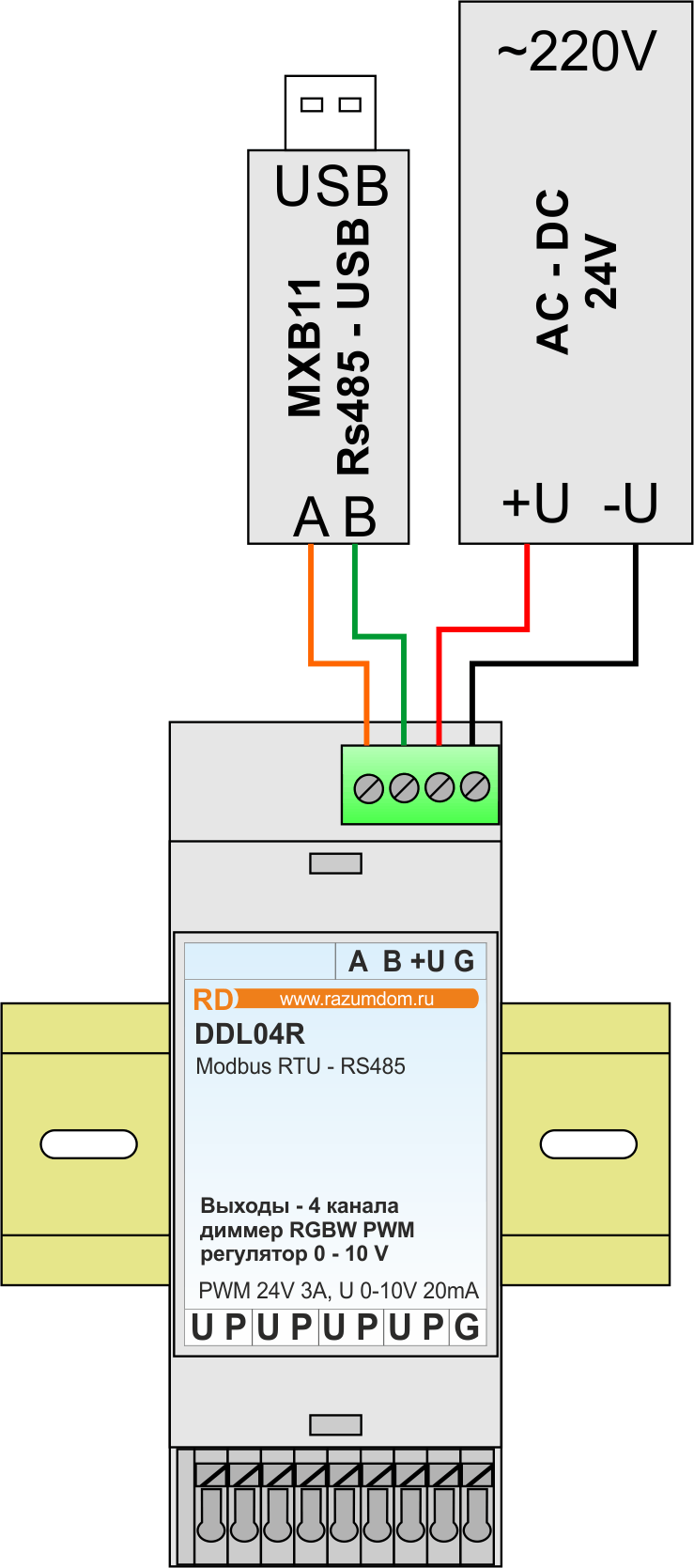

The 4-channel controller module is designed to create building automation systems. The module is controlled from a controller or PC via the RS-485 bus, by commands under the MODBUS RTU protocol.

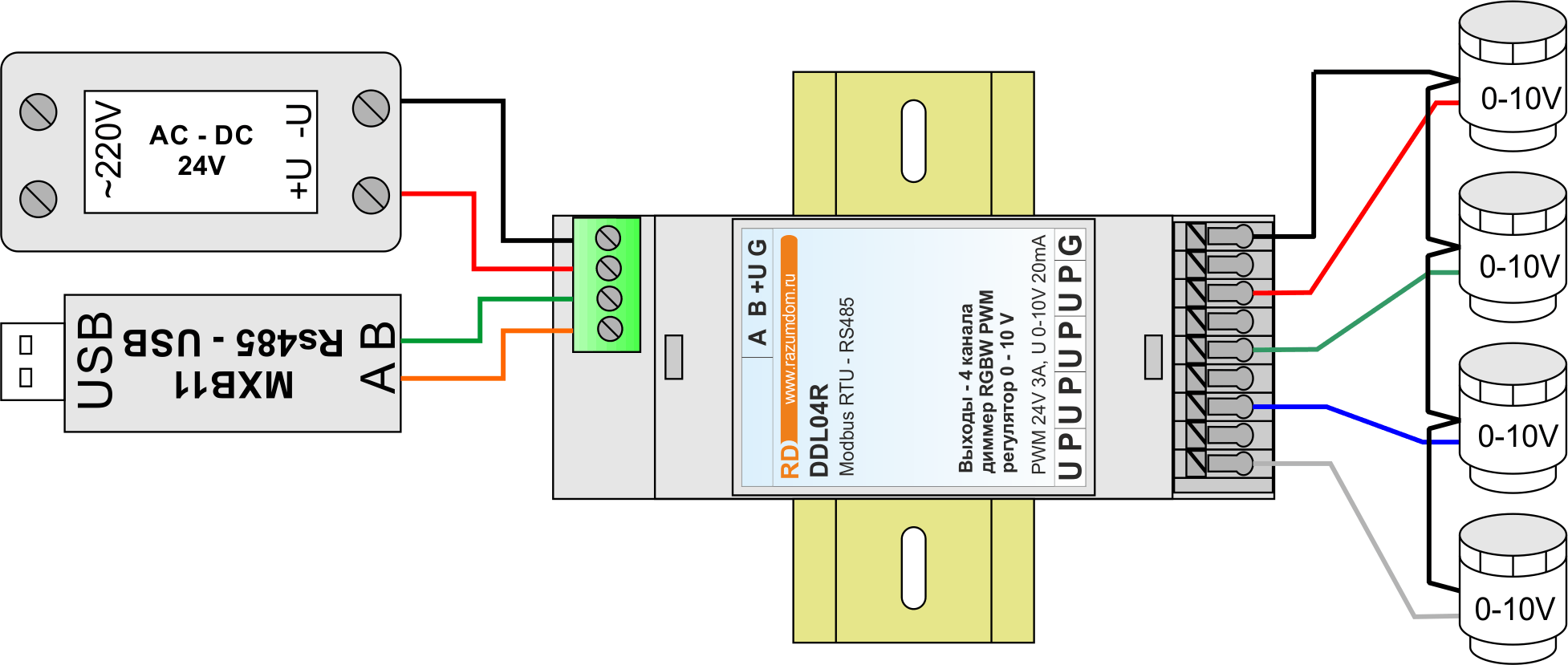

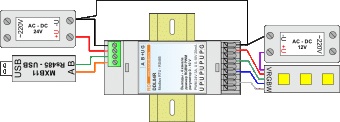

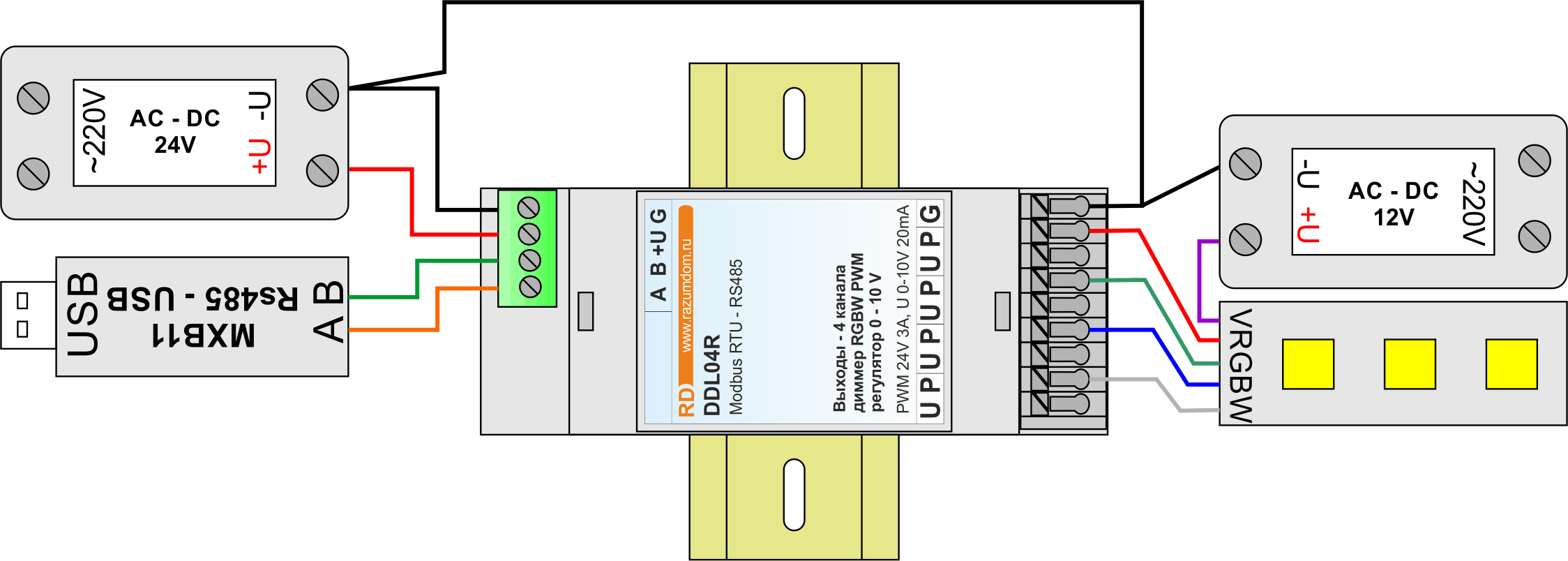

The module has 4 MOSFET outputs of the PWM signals up to 3A 30V per channel. 4 signal outputs 0 - 10V with current up to 20mA. The module can control brightness by a 4-color RGBW tape, adjust level of opening taps. It has built-in scripts, timers, RTC, a smooth increase in output level, set the PWM frequency from 1 Hz to 4 kHz.

The modules have the following features:

- The module has 4 independent channels;

- The module has powerful MOSFET transistors and gate drivers controlled by logical levels;

- Maximum load: voltage up to 30V; current up to 20A DC;

- Possible parallel connection of several channels to increase the current up to 80A;

- It can be used as a solid-state DC relay;

- Has a built-in switching stabilizer of power from the incoming voltage 12-25V;

- Powering of the module (12-25V) and the lamps (1-25V) may be different from different sources. But a common negative wire should be one.

- The switching frequency can be in the range from 100 Hz to 1 kHz;

- The module can work together with PWM controllers of any manufacturers and any interfaces;

- Installation in an electric board on a DIN rail, modules 2 DIN wide.

Technical specifications.

- Supply voltage:                                                                12V ... 25V;

- Power consumption:                                                      no more than 0.2 W;

- Commuting voltage:                                                      0 ... 30V;

- Commuting load current per each channel:              0 ... 20A;

- Operating switching frequency in the range:           100 Hz ... 1 kHz;

- Cross section of wires for control:                              28 - 15AWG, 0.1 - 1.5mm2;

- Cross section of input wires:                                       22 - 18AWG, 0.3 - 0.75mm2;

- Cross section of output wires:                                    26 - 10AWG, 0.14 - 5.3 (4) mm2;
