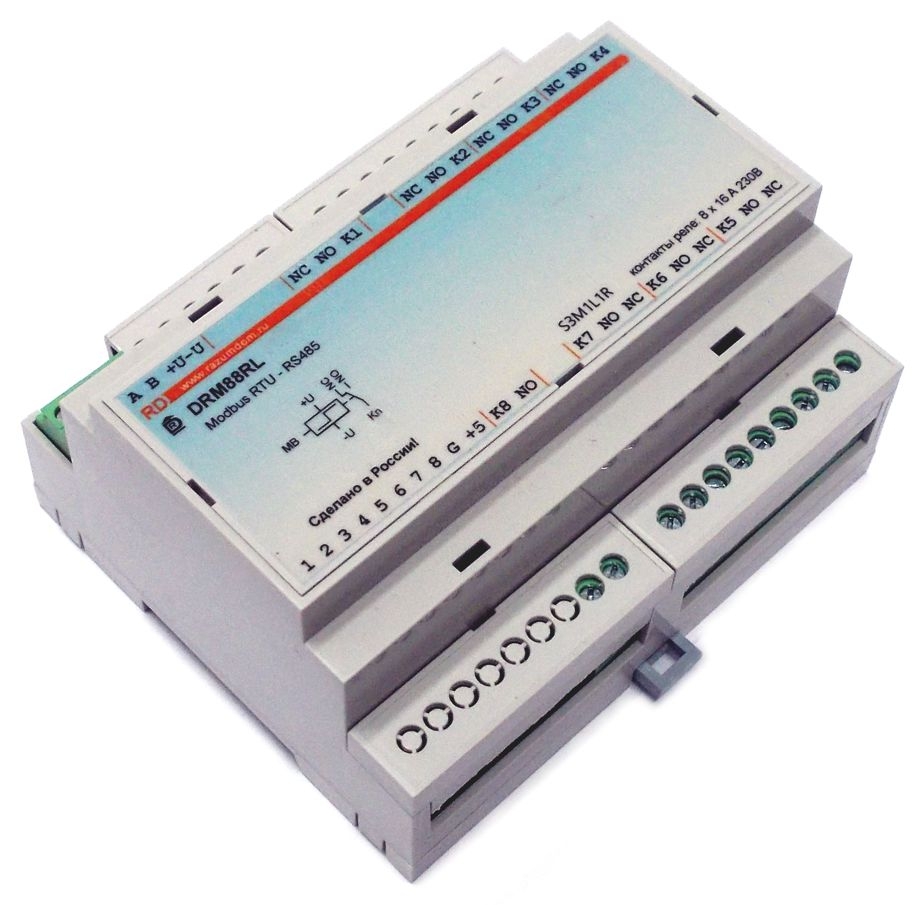

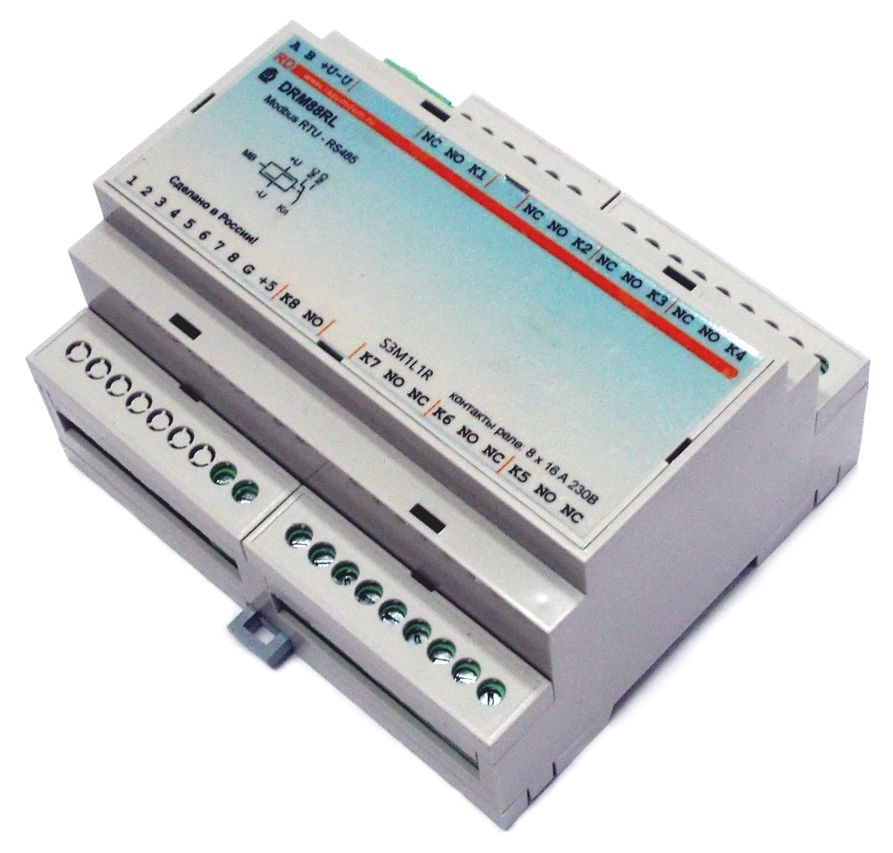

The DRM88RL Relay module, 8 discrete inputs and 8 relay channels under 16 A. Unlike DRM88R, the module does not have built-in scripts, it has only independent inputs and outputs. Control under the RS-485 MODBUS.
• The module has a housing on a 6 unit DIN rail with 8 discrete inputs and 8 relay outputs (up to 16A 230V each). Unlike DRM88R, the module does not have built-in scripts, only independent inputs and outputs. Controlling the module is possible via the RS-485 from a controller or by PC commands under the MODBUS RTU protocol.
The module has the following features:
• the module has 8 discrete inputs;
• the module has 8 relay outputs;
• Each relay can commute up to 16A 250V. 7 relays have a group of C contacts (switching) and 1 relay a group of A contacts (short circuit);

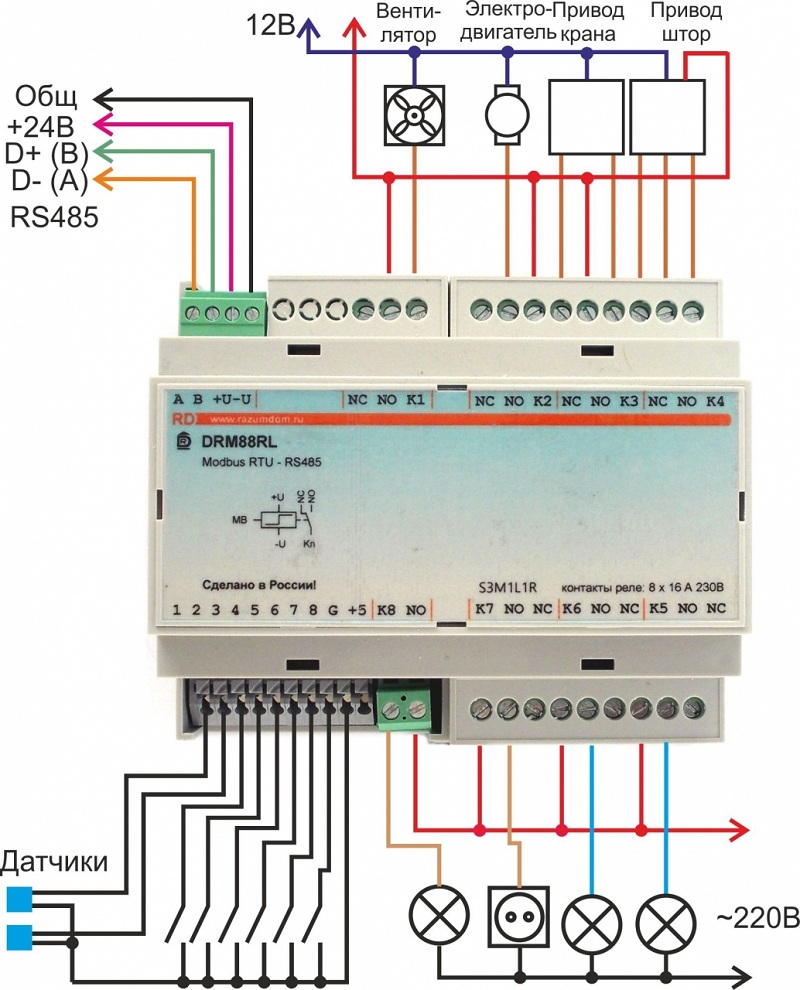

• the module connects to the RS485 bus via a 4-wire cable, including power;
• the module supports the exchange protocol: MODBUS RTU;
• the module can work together with the controllers: “RD” or industrial controllers;
• Installation in an electrical board on a DIN rail, 6 DIN wide;
• powering of the module from 12V to 24V.
When connecting to contacts of large inductive loads relay (contactors, starters) it is necessary to connect a snubber (damping capacitor) in parallel with the contacts.
Contact protection at inductive load.
-
You can ask any question you may have about the product or the work of the store.
Our qualified specialists will help you -
Documentation
DRM88RL_UM2 Size: 956,6 кб
