The PCL018R indicator module is designed to indicate technological processes in automation systems. The module is controlled from a controller or PC via the RS-485 bus by commands under the MODBUS RTU protocol.
Features of the module:

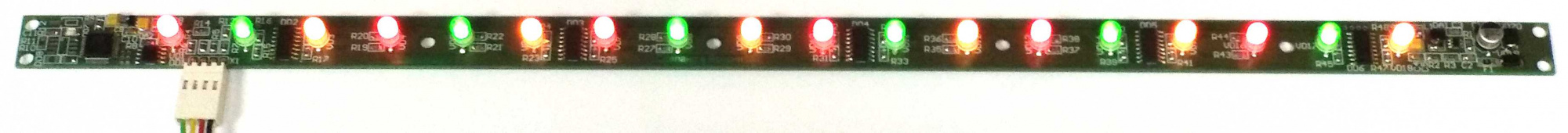

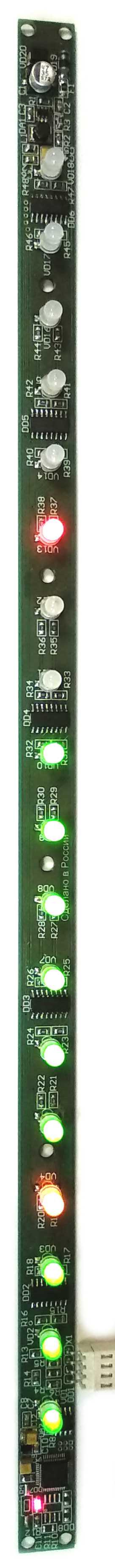

- the module has 18 outputs of two-color LEDs.- Level indicator mode.

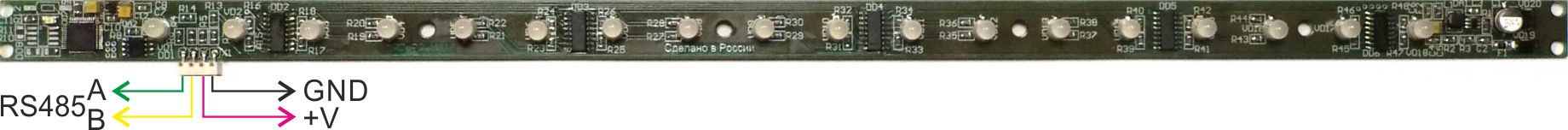

- the module connects to the RS485 bus via a 4-wire cable, including power;
- the module supports the exchange protocol: MODBUS RTU;
- the module can work together with the controllers: “RD” or industrial controllers.
- Installation in a box on the front wall from the inside;
- Powering of the module from 5V to 25V.

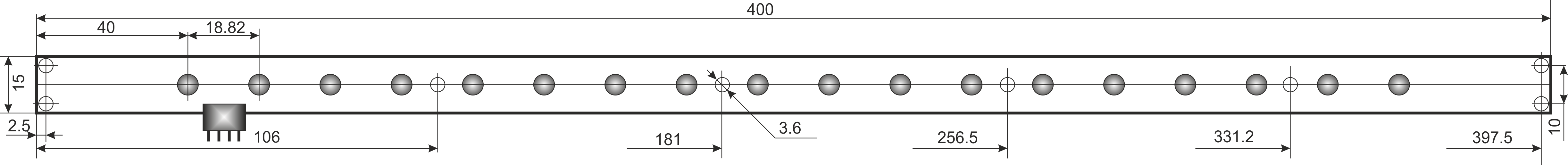

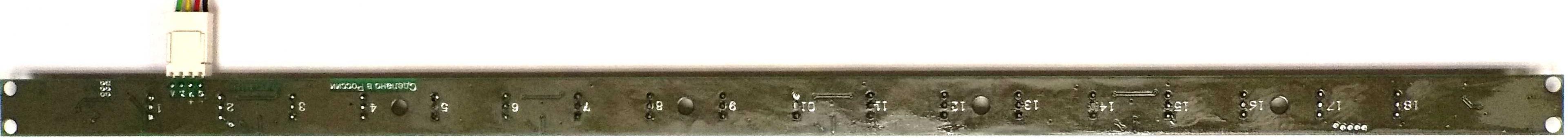

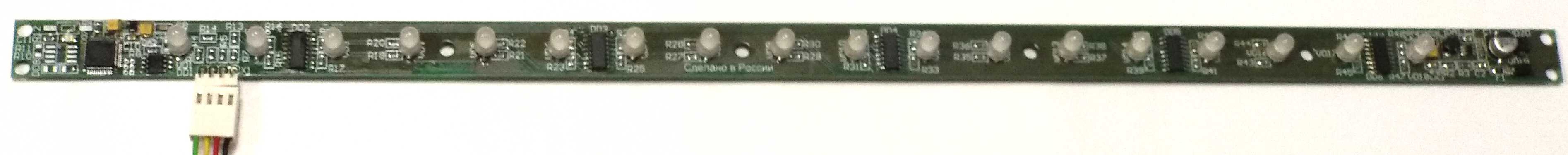

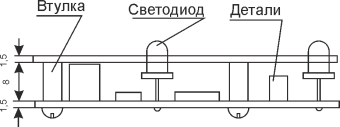

The module is made in the form of an open board for installation inside the block case. Size of the board: L 400mm x W 15mm x H 5mm.
One can use 8 holes to attach the board to the front panel of the block. Each hole is 3.6 mm in diameter. LEDs are arranged evenly in a line with a pitch of 18.82 mm.The module has a built-in impulse voltage stabilizator, therefore it has a high efficiency; and a large range of supply voltage. Power consumption 0.7 W with all 18 luminous yellow LEDs. The maximum current at a supply voltage of 5.5V is 0.125A. With increasing voltage, the current decreases.
-
