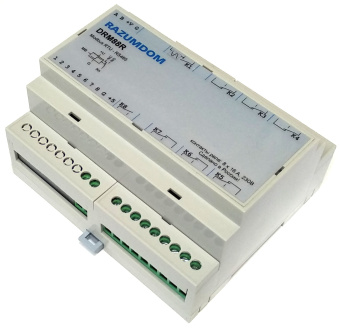

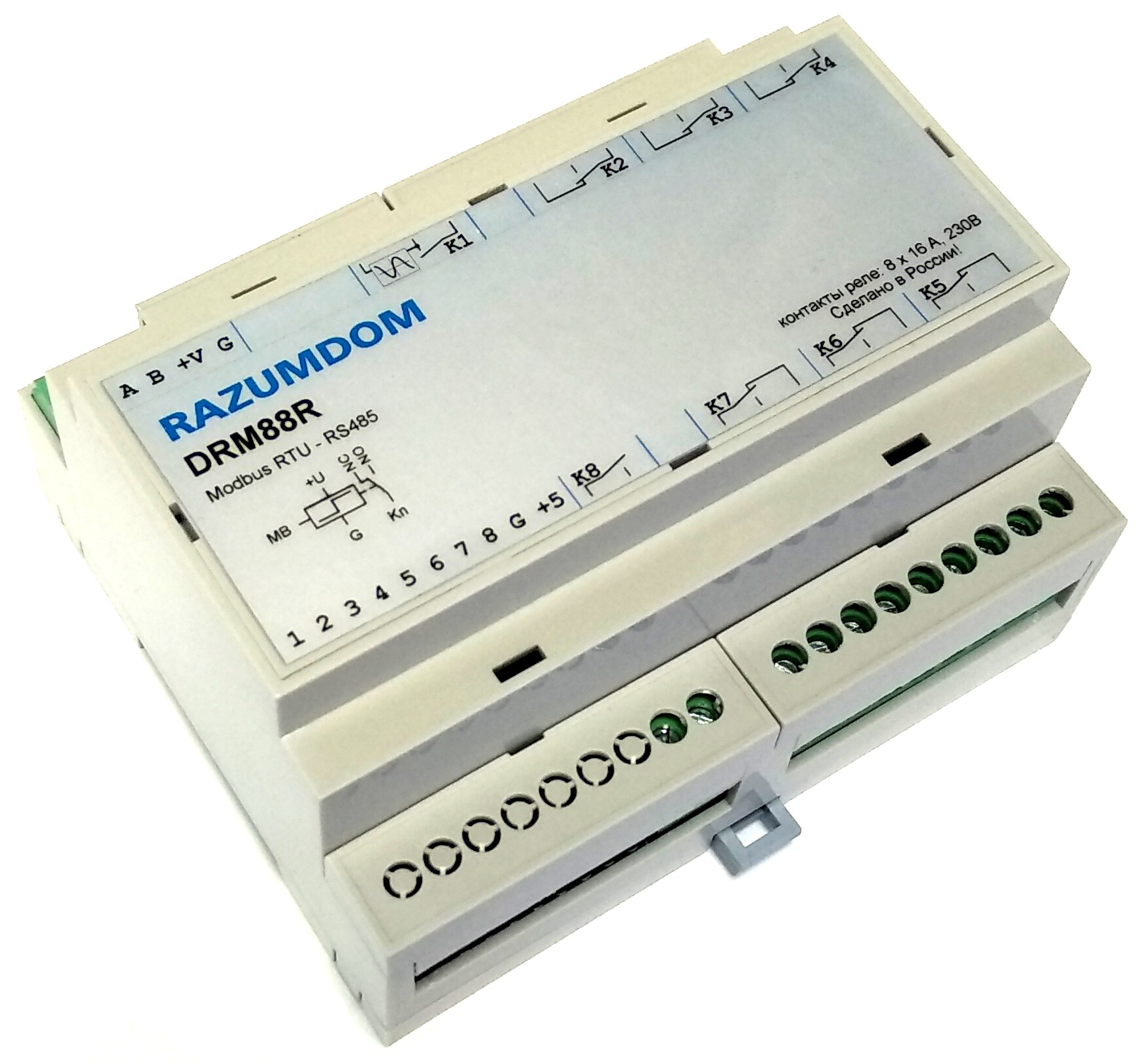

The DRM88R Relay module, 8 discrete and analog inputs and 8 relay outputs. RS-485 MODBUS RTU. DIN rail enclosure. Built-in scripts to execute internal logic.

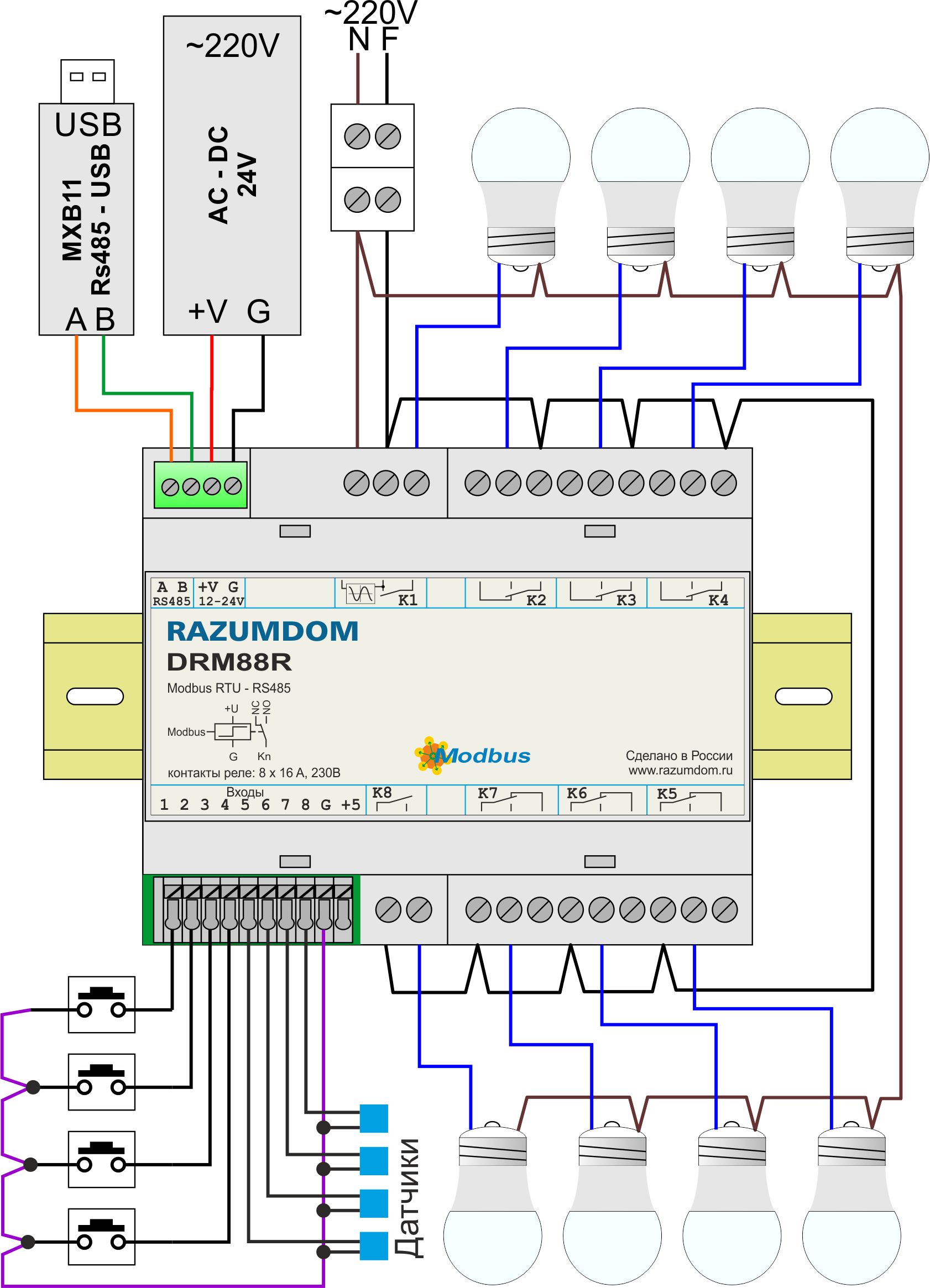

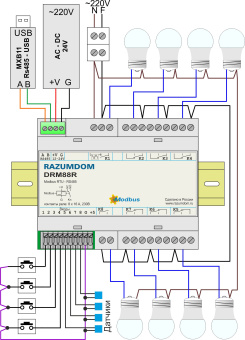

It is a module in a housing on a 6 unit DIN rail with 8 universal inputs and 8 relay outputs (up to 16A 230V each). The module can be controlled under RS-485 from a controller or by PC commands under the MODBUS RTU protocol.
The module has the following features:
- the module has 8 analog inputs;
- the module has 8 relay outputs;
- each relay can commute up to 16A 250V. 7 relays have a group of C (switching) and 1 relay group of A contacts (circuit);
- the module connects to the RS485 bus via a 4-wire cable, including power;
- the module supports the exchange protocol: MODBUS RTU;
- built-in algorithms for interaction of inputs and outputs. Number of algorithms 128;
- the module can work together with the controllers: “RD” or industrial controllers;- installation in an electrical board on a DIN rail, 6 DIN wide;
- powering of the module from 11V to 24V.
-
