DSU44ER-V 4-channel sensor with analog sensors

DSU44ER-V 4-channel sensor for measuring sensor values and transmitting them to the controller via Ethernet under the MODBUS TCP protocol or RS-485 under the MODBUS RTU protocol. Built-in WEB server.

The DSU44ER-V 4-channel sensor is designed to measure values of climate sensors and transferring them to the controller. The module is controlled from a controller or PC via the RS-485 bus by commands under the MODBUS RTU protocol or the Ethernet bus under the MODBUS TCP protocol.

The modules have the following features:

•        the module connects to the RS485 bus via a 4-wire cable, including power;

•        large range of supply voltage from 5 to 24 V.

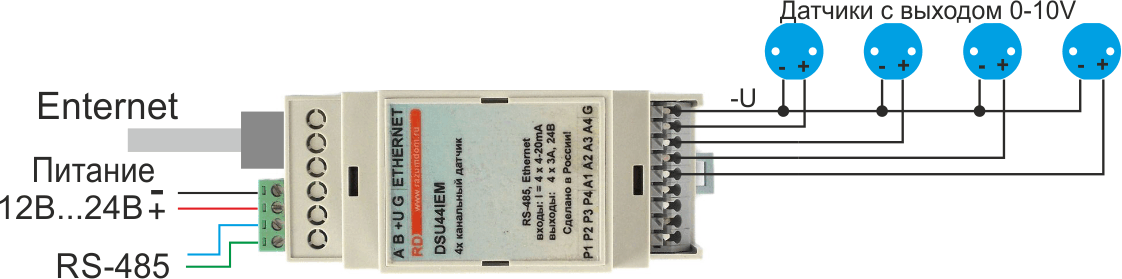

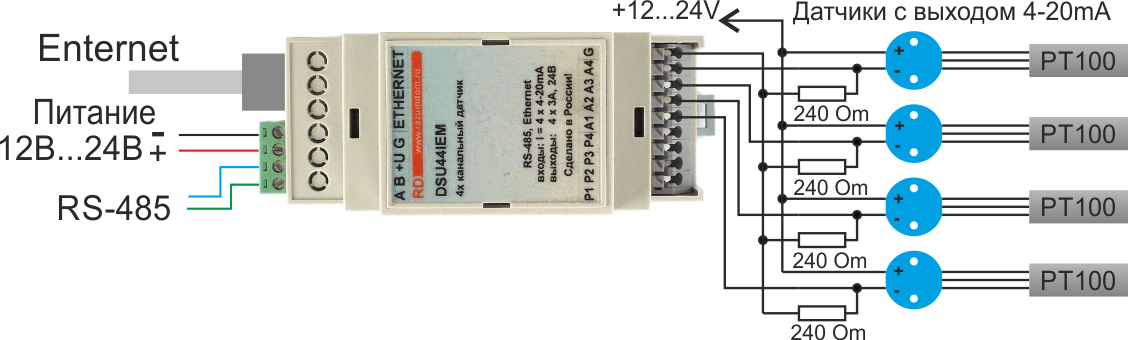

•        4 sensor inputs with analog sensors;

•        4 discrete outputs;

•        the module simultaneously supports 2 data exchange protocols - MODBUS TCP and MODBUS RTU;

•        it has a built-in WEB server for controlling from a PC via a WEB browser;

•        the module can work together with the controllers: “Smart Home” or industrial controllers.

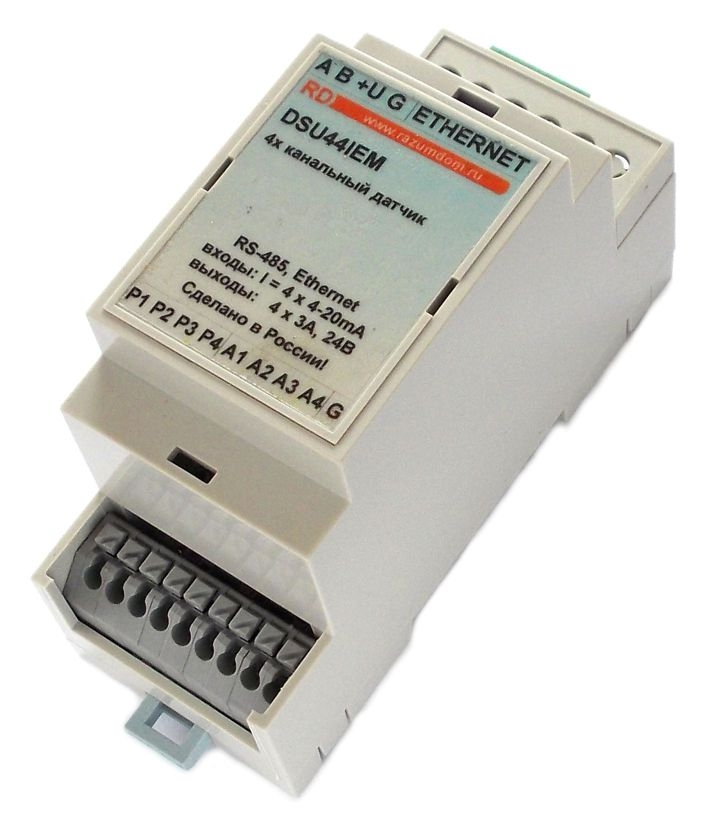

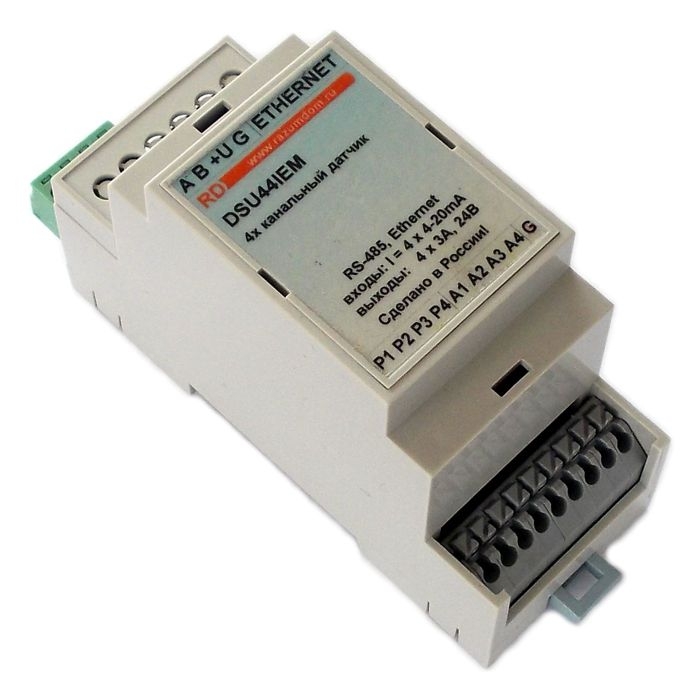

The module is made in a plastic housing 2 DIN wide for installation in an electric board on a DIN rail with 9 outputs, 4 sensor inputs, 4 discrete outputs and a common wire. Case size W 35.5mm x H 58mm x D 90mm.
