Test version. Currently available only for testing and software debugging.
The module has the following features:
the module has 8 discrete or analog inputs and 8 relay outputs;
Each relay can commute up to 16A 250V;
7 relays have a group of C contacts (switching) and 1 relay a group of A contacts (circuit);

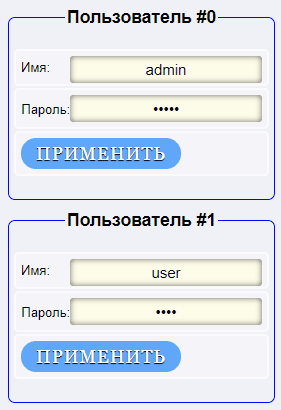

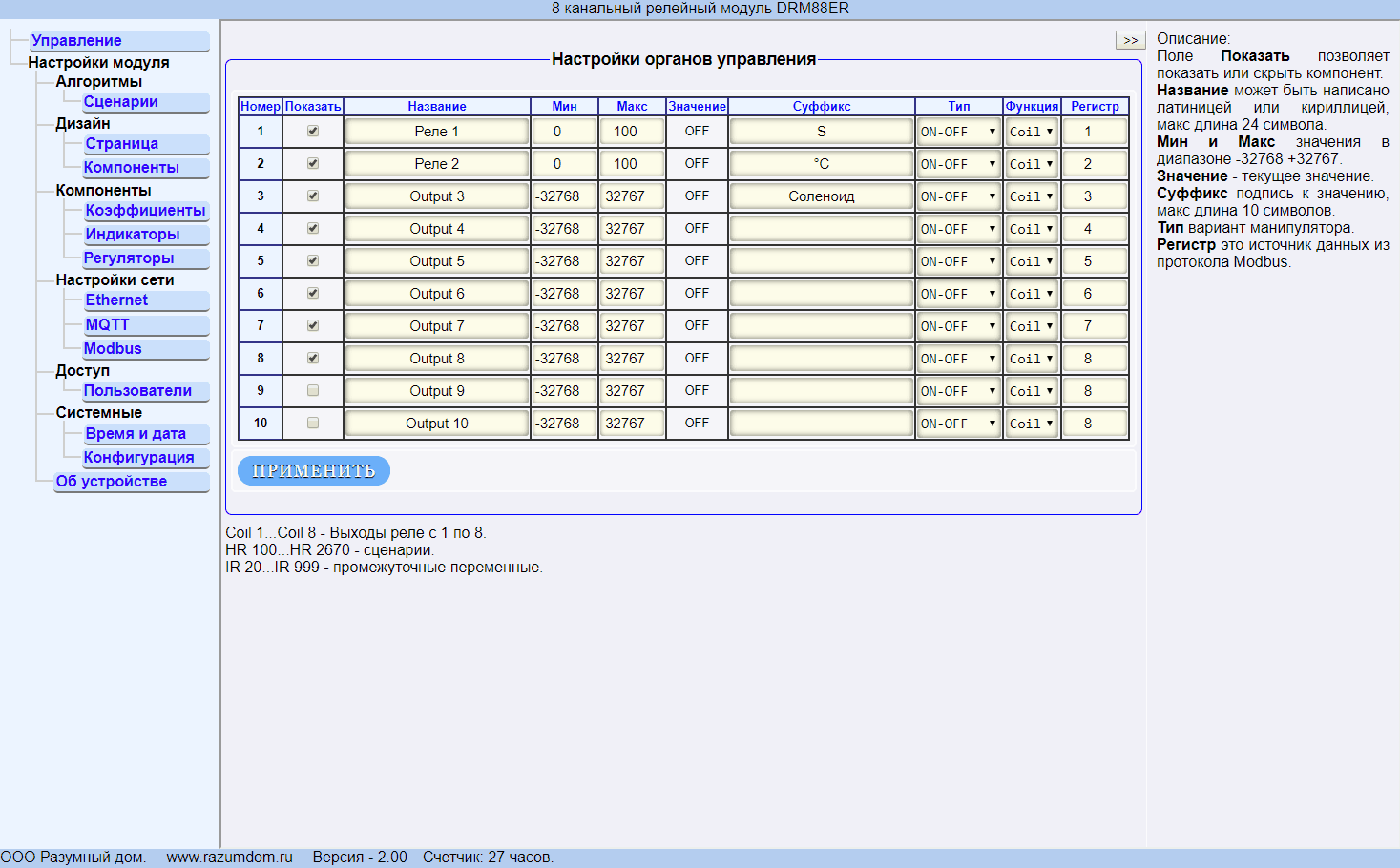

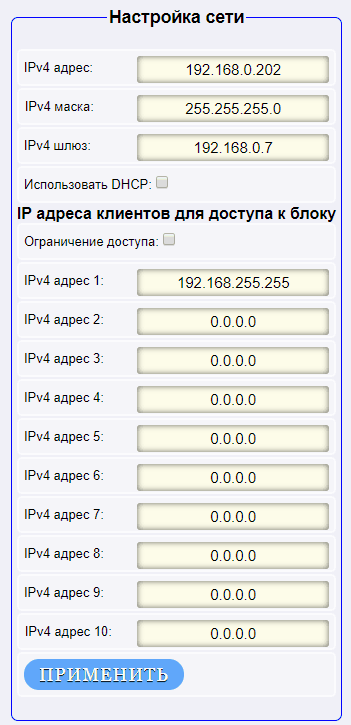

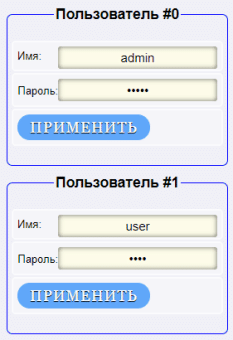

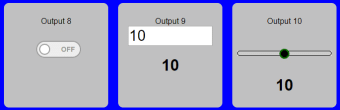

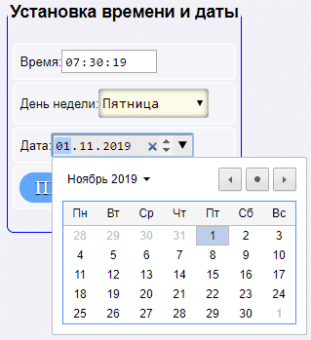

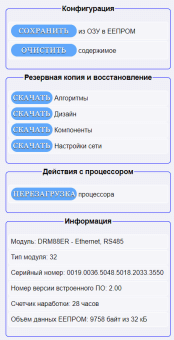

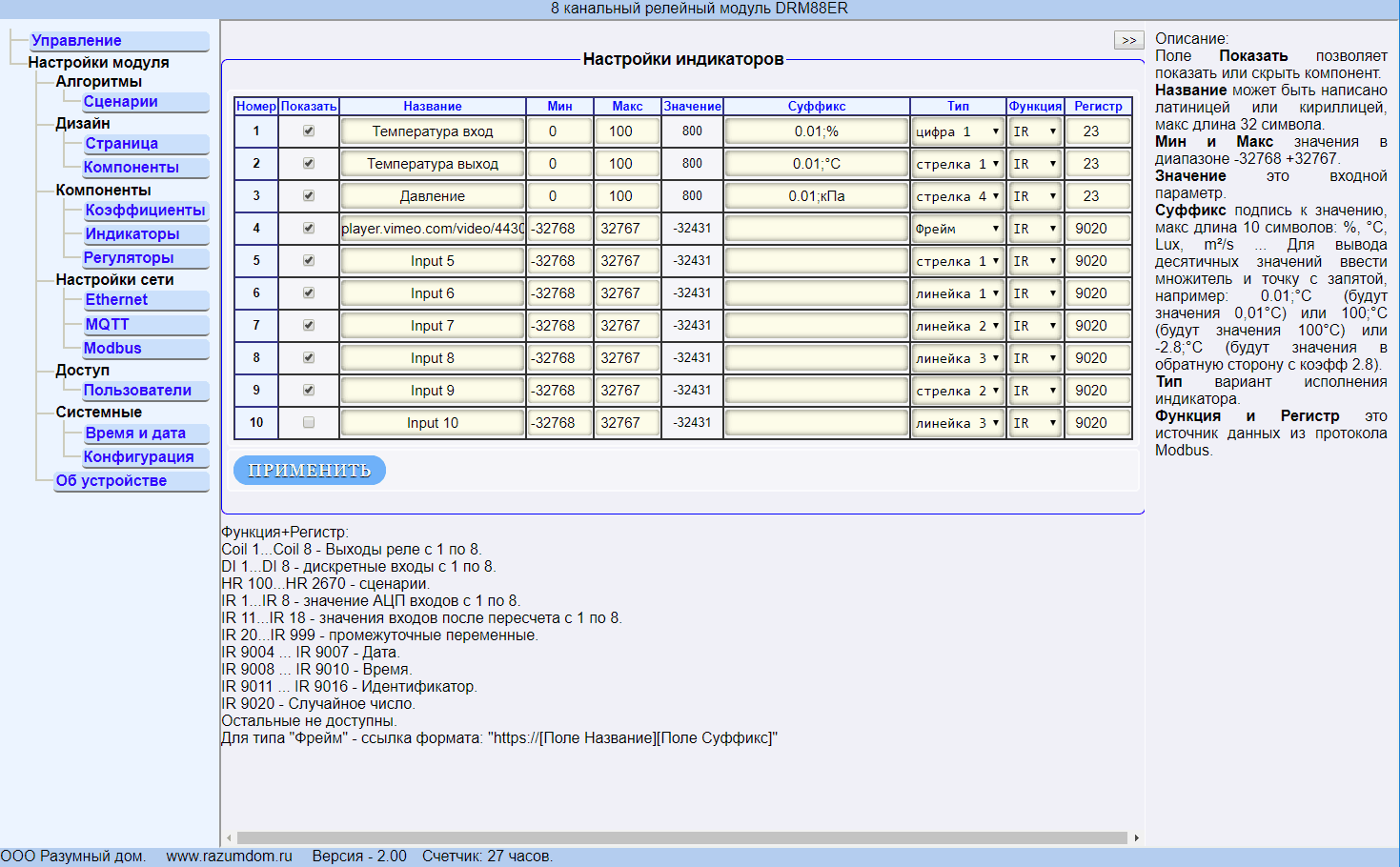

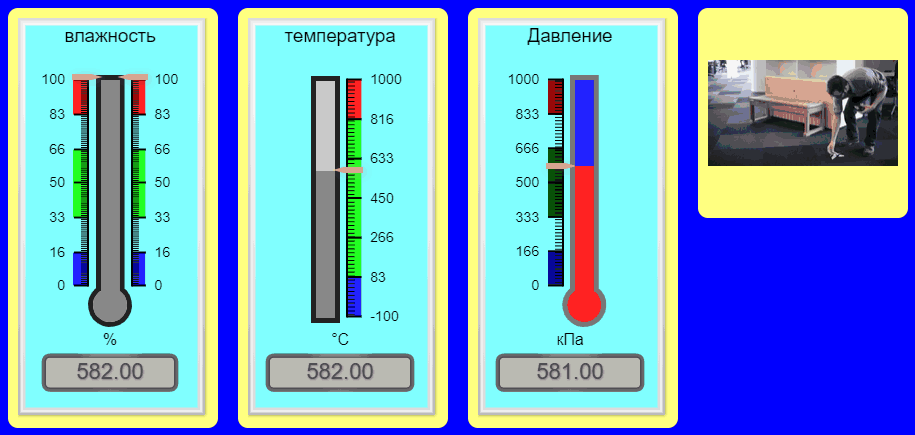

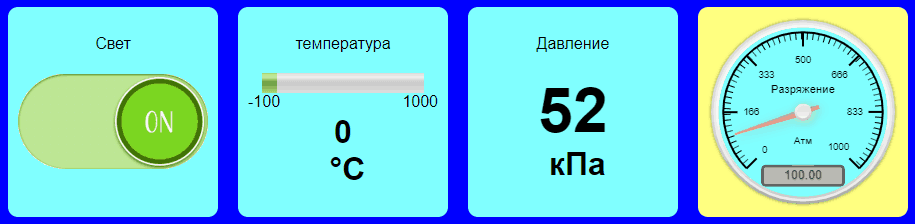

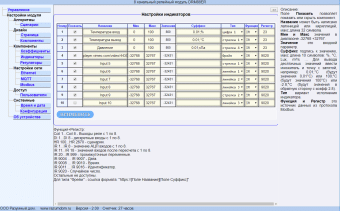

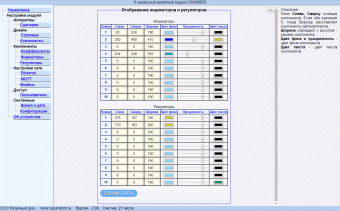

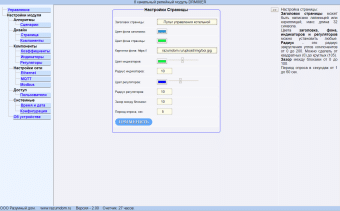

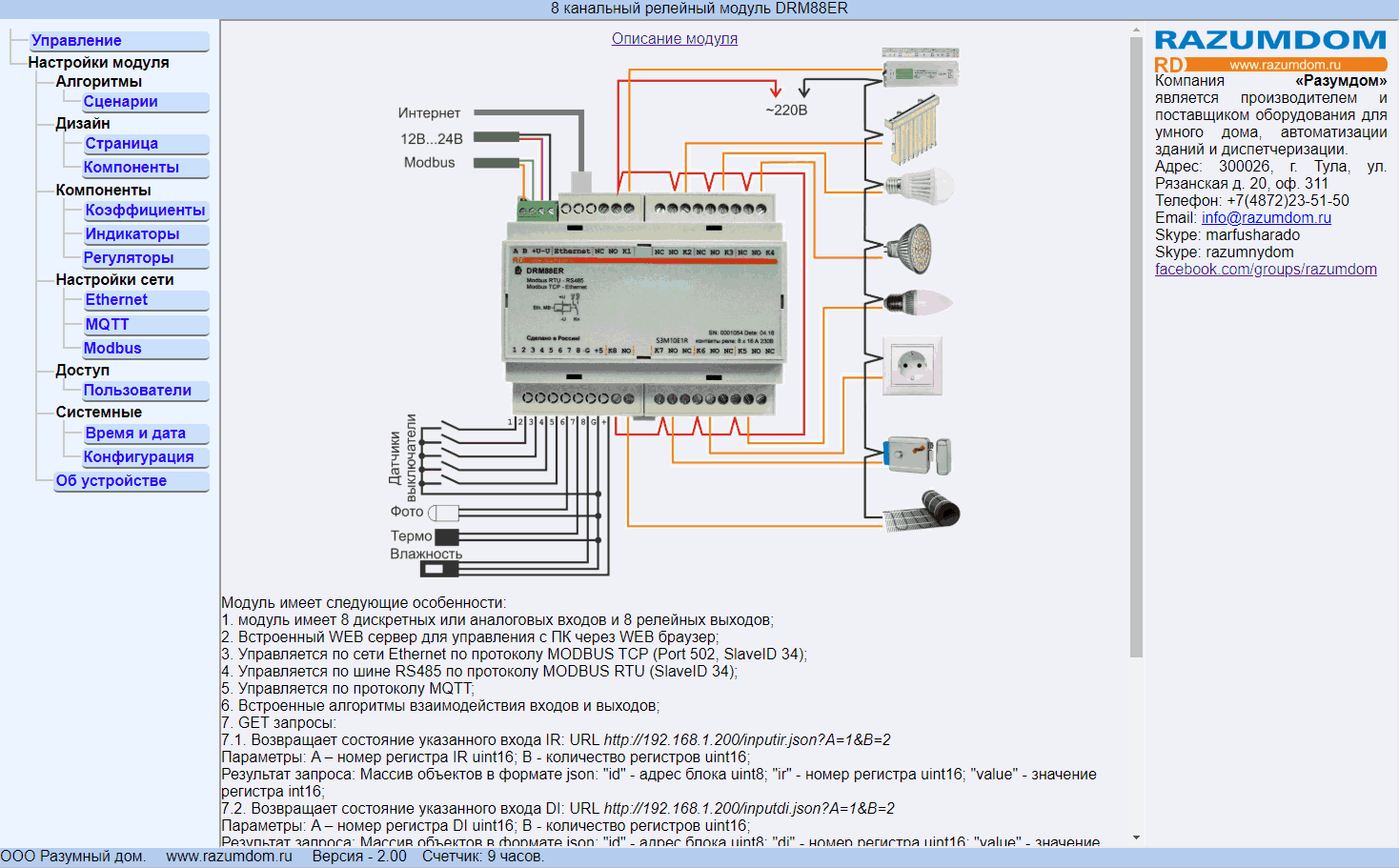

has a built-in WEB server for control from a PC via a WEB browser;
the module is controlled via Ethernet under the MODBUS TCP protocol;
the module is controlled via the RS485 bus under the MODBUS RTU protocol;

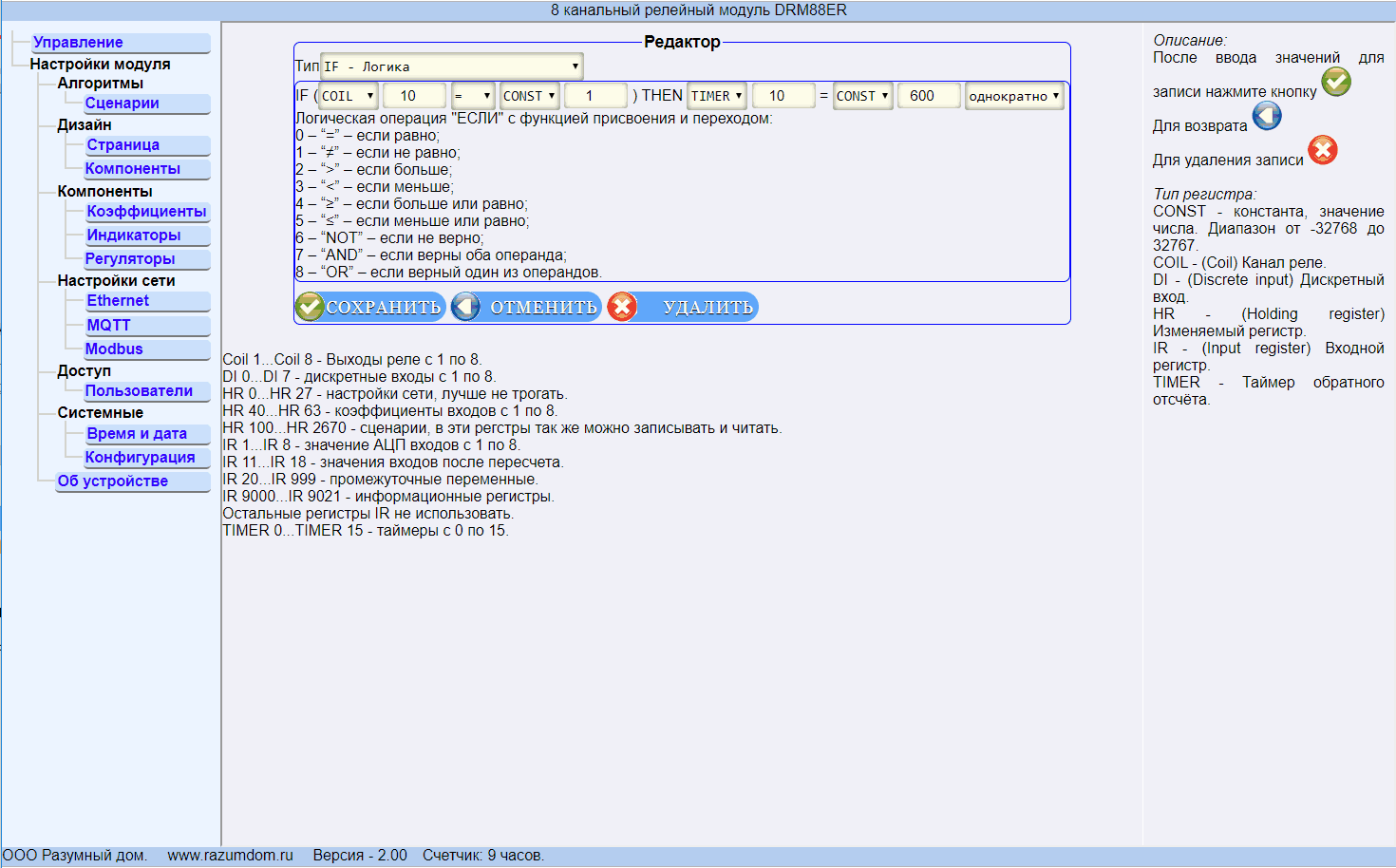

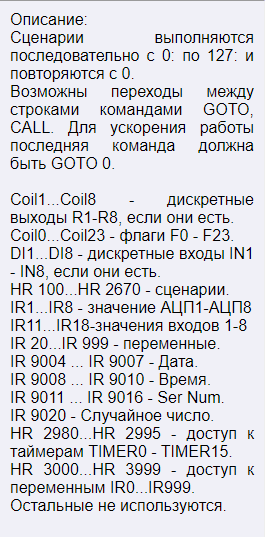

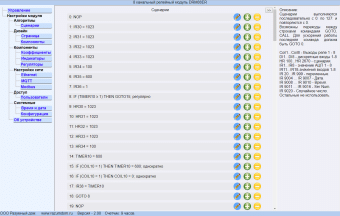

has built-in algorithms for interaction of inputs and outputs;
the module can work together with the controllers of: “Smart Home” or industrial controllers under the MODBUS protocol;
powering of the module in the range from 11V to 24V. Power consumption 5 W;
Installation in an electric board on a DIN rail, 6 Units wide.
-
You can ask any question you may have about the product or the work of the store.
Our qualified specialists will help you -
Documentation
xERv2_Modbus Size: 3,2 мбxERv2_Modbus Size: 3,2 мб
